Additional Wire Machine Post Profiles - TEXT

Additional Wire Machine Post Profiles - TEXT







With the introduction of Version 2022, you now have the possibility to install directly your machine profile, meaning you have multiple machines from the same Mfg. but different models.


VIDEO VERSION CAN BE SEEN AT THE LINK BELOW

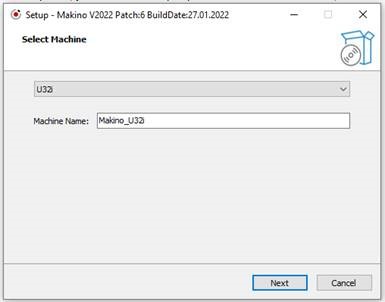

You can install the postprocessor more than one time and choose at every pp installation the correct machine model.

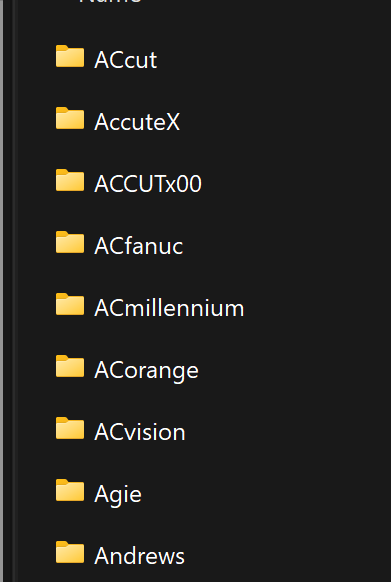

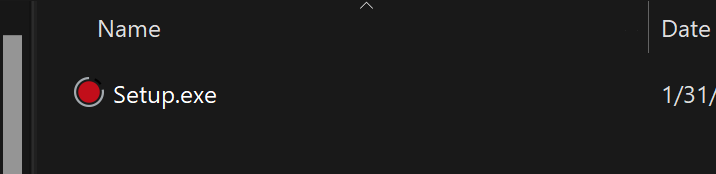

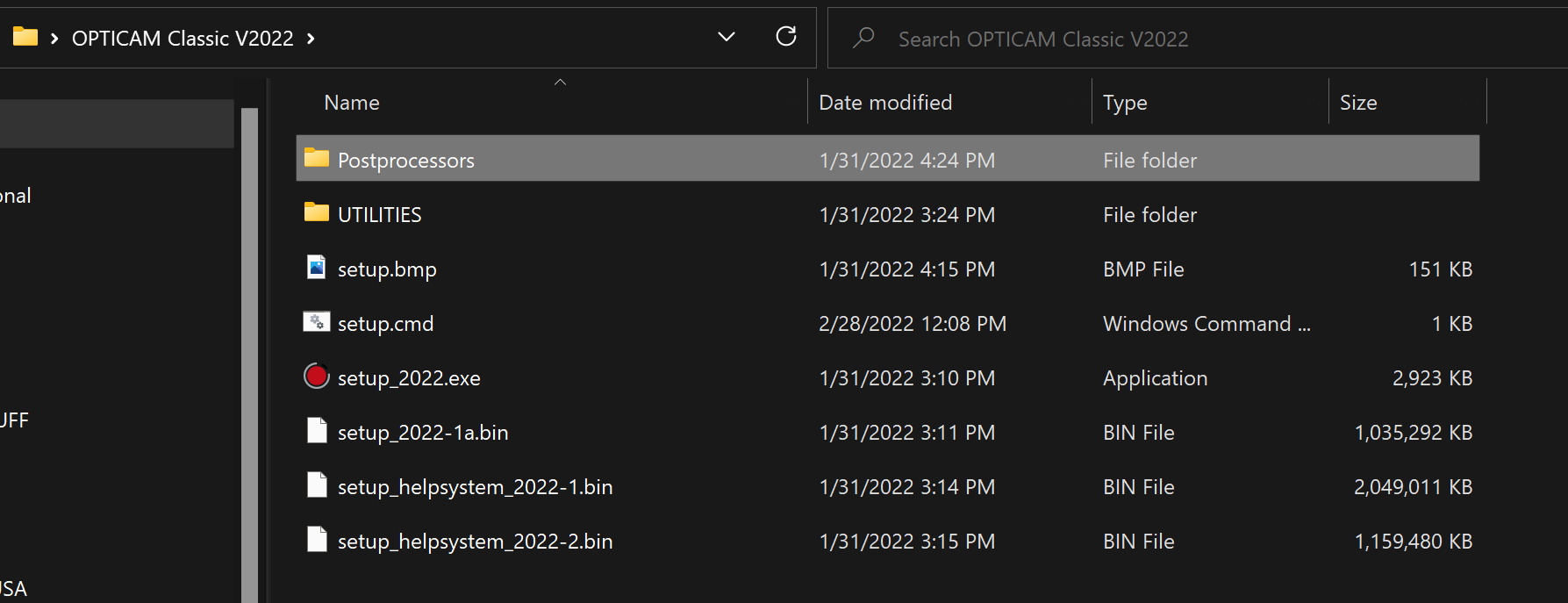

 After installing the system with the first postprocessor.  Return to the installation files and find the folder “*\OpticamClassicV2022\Postprocessor\Wire\(Machine Folder)” for your needs.  Double Click the Setup.exe file  and then you can choose again the postprocessor you need, and choose in the installation routine the next machine profile



























Once Complete repeat the process as needed until you have the necessary Machine Models installed.
Now you will see them listed in your folder individually.



 If you need any assistance with this please let us know by emailing support@optisolutionsusa.com
