Installation of EDM Expert

--------------------------------------------------------------------------------------


Note: You must have Administrator Rights to perform the actions for the following steps.


Note: If you have recently purchased a new post-processor requiring the use of EDM Expert and you do not have your original OPTICAM Classic installation data available, then you should have been sent information for downloading the EDM Expert installation program. You can also download V2.1.8 from the link below.


Uninstall any previous version of EDM Expert first.

EDM Expert 2.18


Install all the items shown below(except ExpertMill) in the order that they are listed.





Once all the EDM Expert files have been installed, then a GFMS folder for EDM Expert should exist in the following location and contain the following folders and files.

C:\GFMS





If the technology does not match your machine you can copy the files from your machine and place them on your computer.

For copying the technology data from your machine to the EDM Expert installation on your computer then please do the following:

ACCut C/E/P Series Machines


On Machine


Browse to Local C:


Open the GFMS folder and then open the Cut_EDMExpert folder.


Copy the Tct folder to a flash drive


At Computer

Browse to Local C: drive


Open the GFMS folder and then open the Cut_EDMExpert folder


Rename the existing Tct folder to Old_Tct


Copy the Tct folder from the flash drive to the location of where you renamed the original file to Old_Tct


EDM Expert installation on the computer should then have the same technology data that exists on the machine



Cut 200/300SP (ACCutX00 Post Processor)

On Machine


Browse to Local C:


Open the GFMS folder and then open the Cut_EDMExpert folder


Copy the Cut folder to a flash drive



At Computer

Browse to Local C: drive


Open the GFMS folder and then open the Cut_EDMExpert folder


Rename the existing Cut folder to Old_Cut


Copy the Cut folder from the flash drive to the location of where you renamed the original file to Old_Cut


EDM Expert installation on the computer should then have the same technology data that exists on the machine.

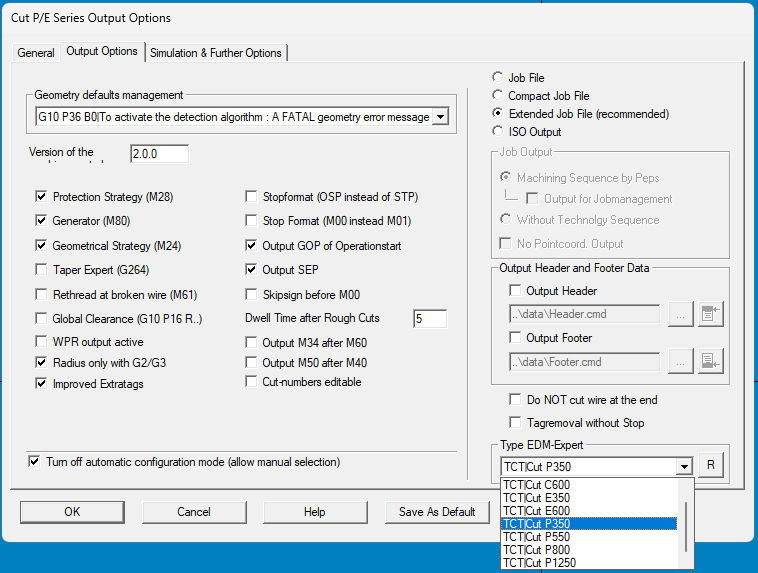

After installing EDM Expert you will need to open PEPS and select your machine in the Postprocessor configurations. This will load the correct technology database for your machine.

Remember to save this setting as a default. The password to save items as a default is "ketmac" .

For assistance regarding how to create a program using EDM Expert within OPTICAM Classic, please email support@optisolution.com
