Knowledge Base Database Dialog Instructions

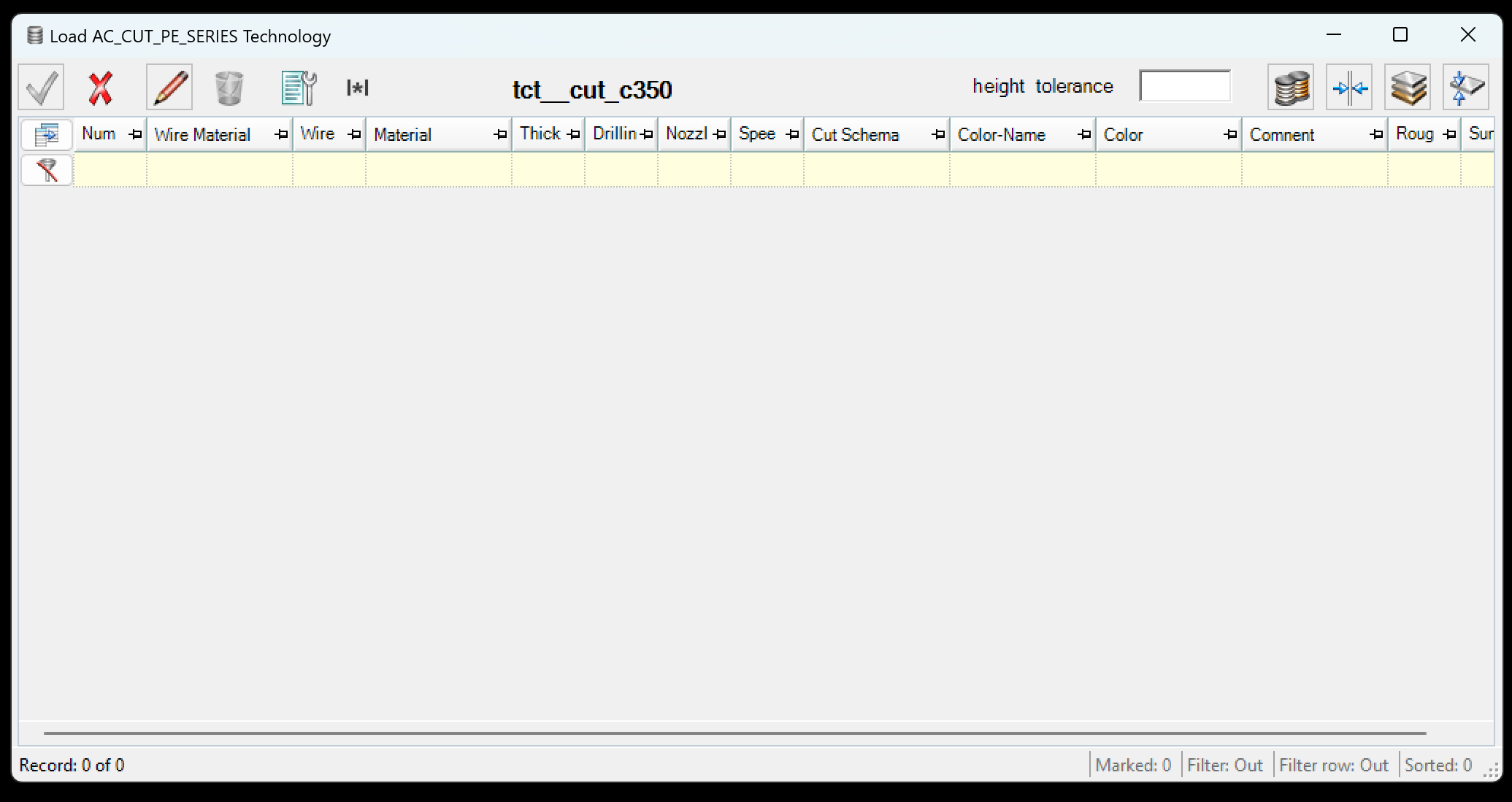

The goal of this KB is to explain how the dialog works and its functions.

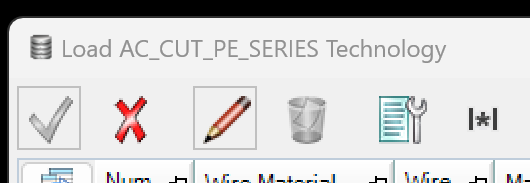

We will start in the Upper Left Corner set of Buttons
The button is used to load in the knowledge-based file
once selected.
The button allows you to cancel the command and go back
to the previous dialog.
The button is used to allow for selecting and deleting kno
files from the database.
The button is used to delete the selected files from the database.
The button is used to change the Font in the dialog.
The button adjusts the width of each column based
on the longest name in that column

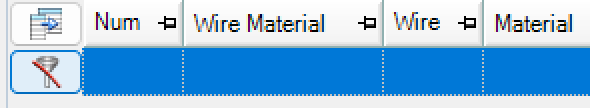

Below those Icons there are 2 more buttons

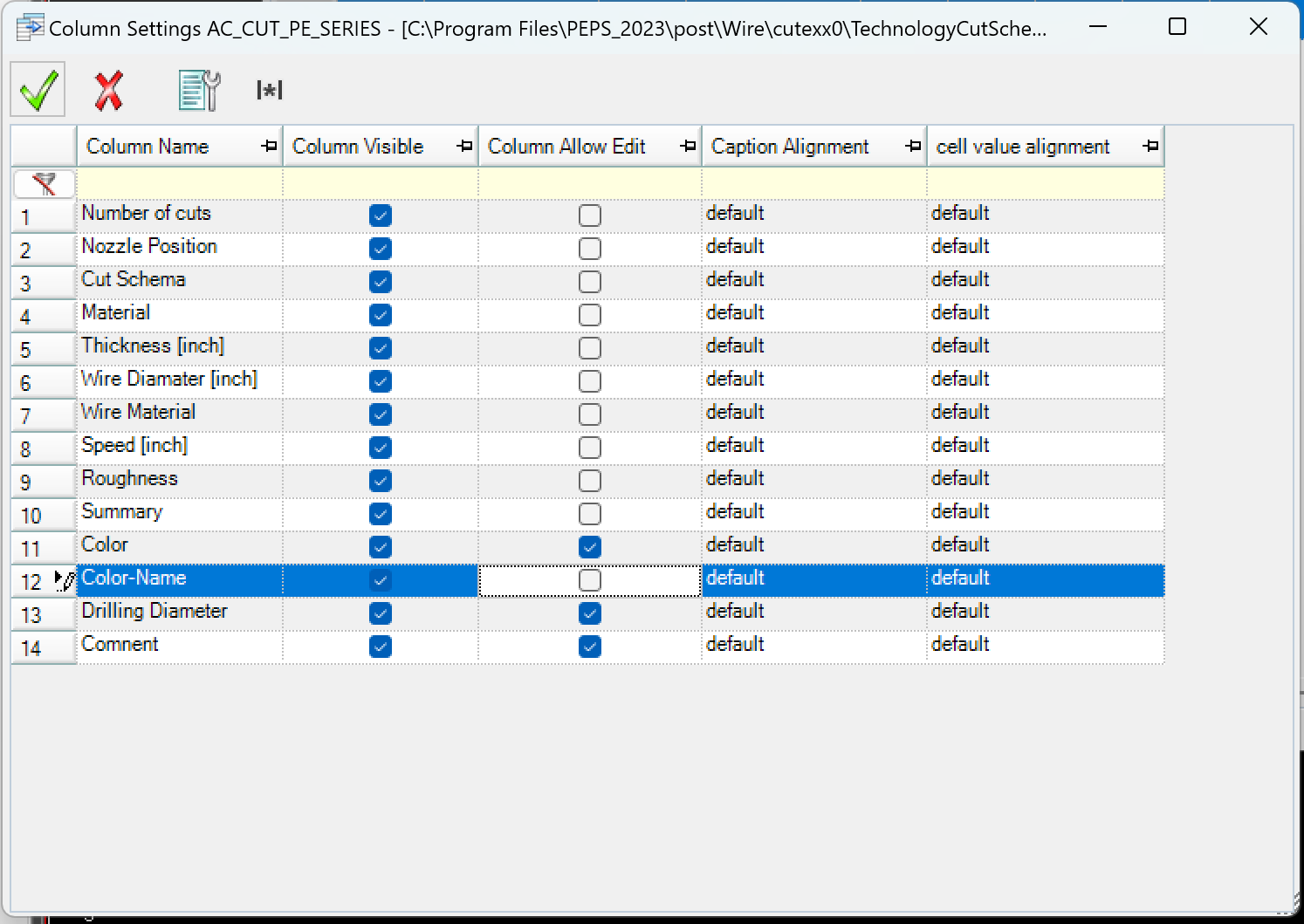

Check or Uncheck the columns you want to see. Once they are selected, press the green check icon.
The Buttons on the Right Side
Pressing these will filter the database to the settings from the Operation Sequence Page for (In order) Wire Type, Wire Diameter, Material, and Thickness.
This Icon and Row are where the filters for each column are.
You can clear all filters by pressing the button.

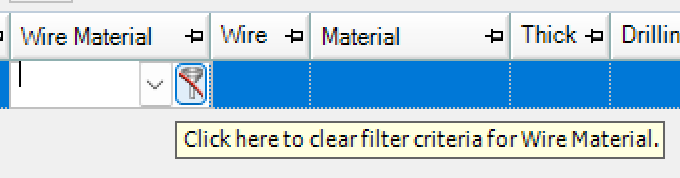

If you click in the “empty” box it will load the filter for that Column. The filter is based on the values in column.
