Updating Nucleo Fixture Builds

Updating Nucleo Fixture Builds

Updating Nucleo Fixture Builds

1) Go to https://www.optisolutionsusa.com/nucleo-downloads

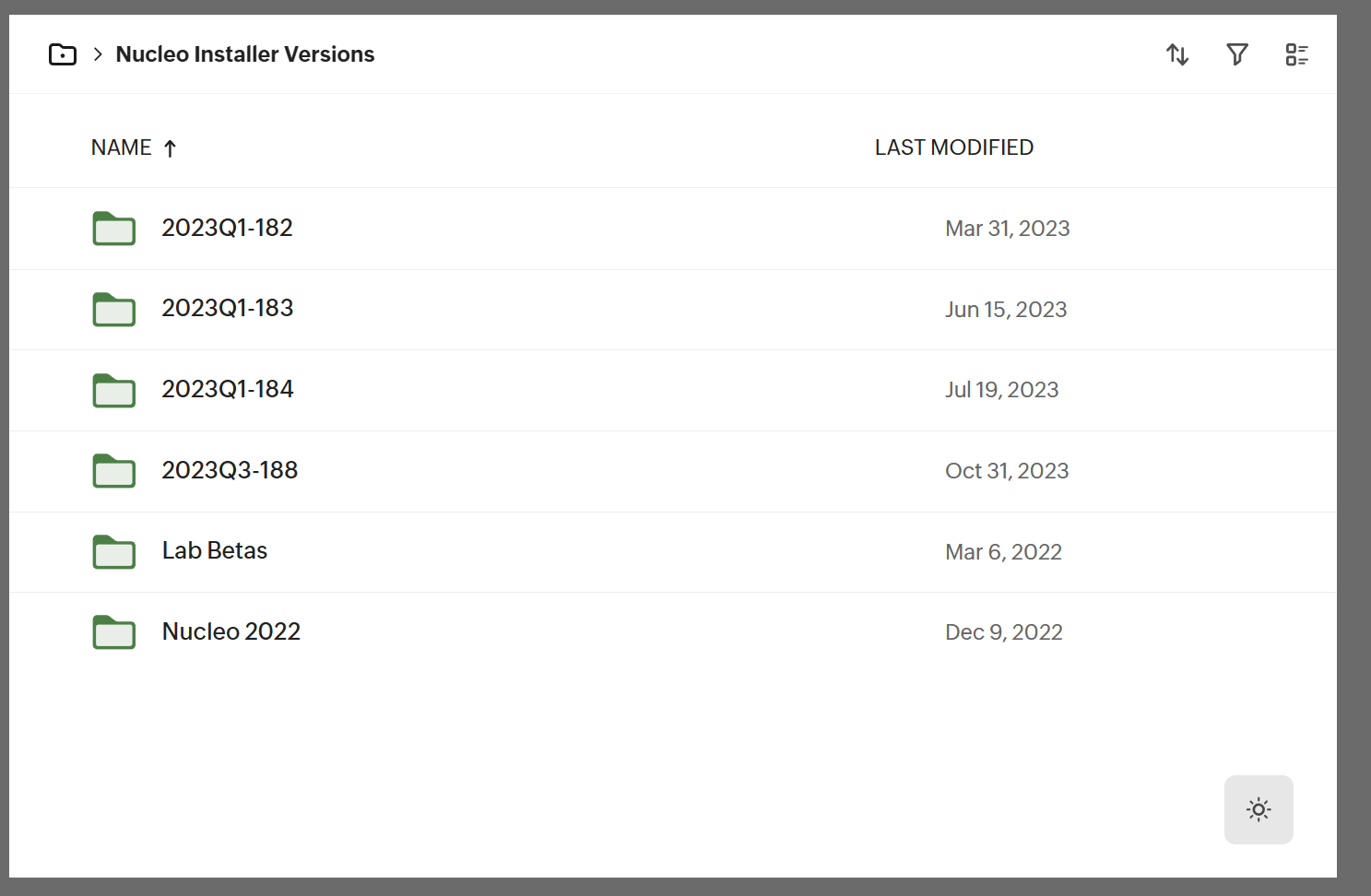

2) Scroll down to the file list box titled Nucleo Installer Versions below the Full Installation Dialog.

3) SolidCut CAD Core is a prerequisite to install Nucleo. There will be multiple versions available for download, all named according to their release versions and dates.

Select the version you'd like to use - this will take you to a sub-folder. Select the nucleosetup.exe and download it. Note: You may also be able to preview any release_notes.txt file in the same folder if it is included.

Current Supported Release Update - 2023Q1-188


4) Right-click and "Run As Administrator" the nucleosetup.exe

5) Agree to the License Agreement, choose the default options by clicking "Next".

6) A shortcut icon will be made for each Nucleo version, for example:




This allows you to run and maintain different Nucleo versions within the same core SolidCut CAD environment.

7) After completion, it should be ready to use (assuming the licensing installation requirements have been completed).

-End-
