OPTICAM Classic/PEPS crashes without any error

OPTICAM Classic/PEPS crashes without any error

OPTICAM Classic/PEPS crashes without any error
​Symptoms

When using the application, such as the WEDM module - the software just crashes out completely during creating operations such as a profile op etc.

Troubleshooting

Turn off antivirus to see if it is interfering with the Python part of the application.
Ensure the Graphics card is expressly supported.
Update graphics drivers.
Set the NVIDIA Control Panel profile to "Dassault"
Set Manage GPU Utilization to " Dedicate to graphic tasks"

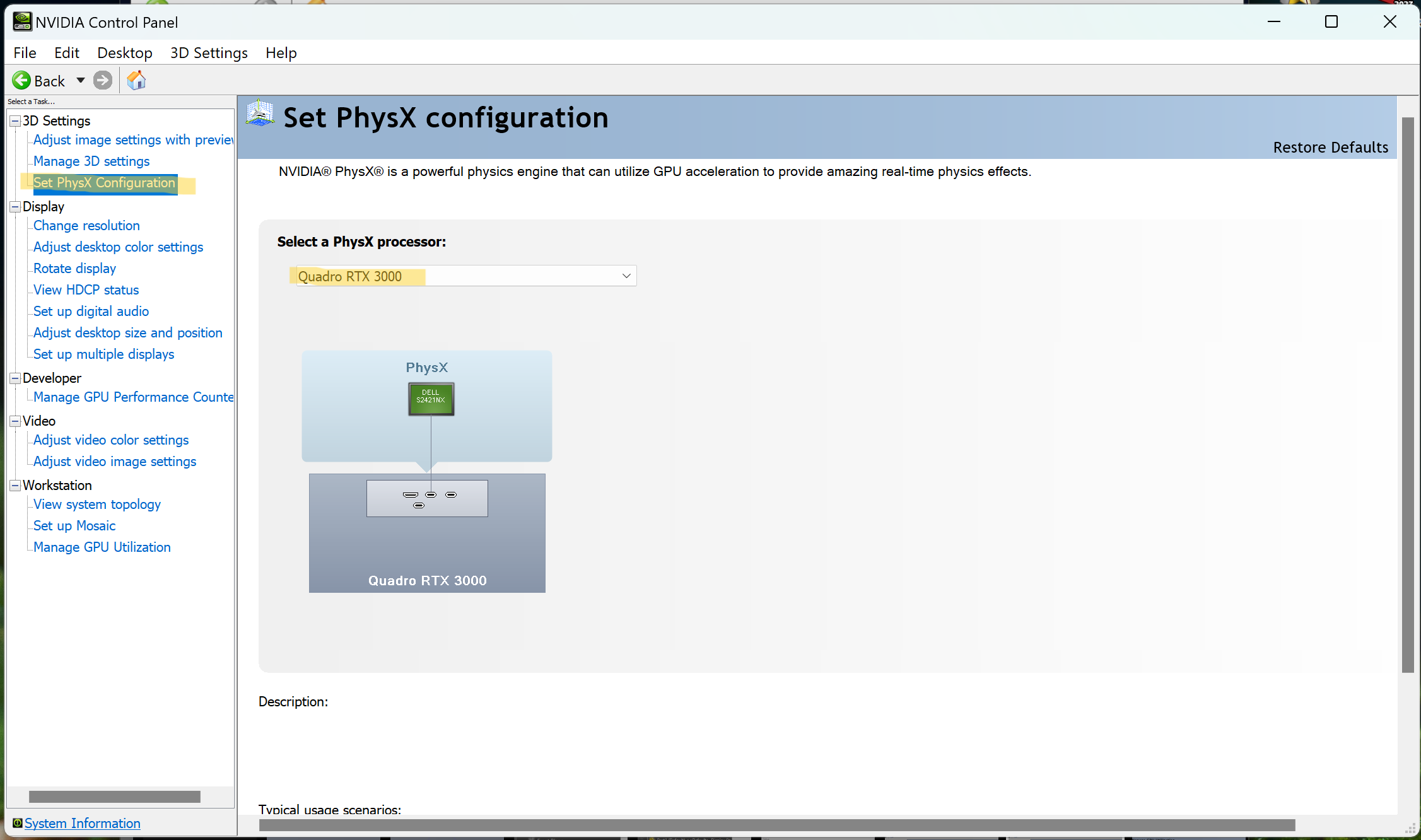

Set the PhysX Configuration to your GPU then restart the application and retest:
