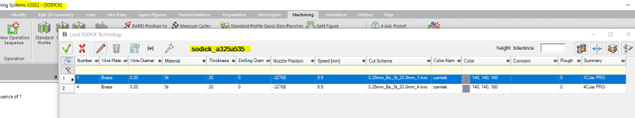

New KNO Database Selection V2022

New KNO Database Selection V2022

New option in module settings Version 2022

Common post settings - database table name



Procedure how to continue using an existing database in the new Version:

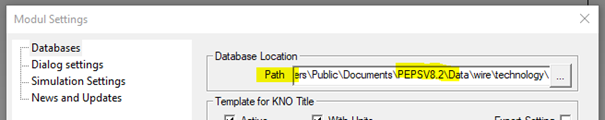

In the module settings of  Version 8.2 look for the path where the database is located :



Which table is used in Version 8.2 ?   -> look directly in the database

New view



Old view

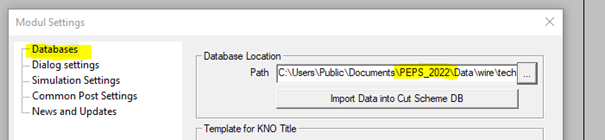

In  Version 2022 make sure that the same database is used, so the old cutting schemes can be further used:

 Variant 1 : Database remains in the "old" place, is used from there.

 V

Variant 2 : Database is copied to current path



 Select database path accordingly

 Save entries with “save as default”

 Close dialog

 Open dialog again, only then the list with the individual tables is updated

 Now you can select the correct table in the module settings



Very important :  save your entries with "Save as Default", otherwise the table will not be active

 Now the correct table is displayed in the edits
