Downloading & Installing Nucleo


Notes
IMPORTANT: If you are upgrading from an older version of Nucleo:

      - Follow the separate Knowledge Base instructions on how to update your license first with the latest major version's password.
      - You will need Administrator rights to perform this.
      - If you use a floating-license for accessing Nucleo, ensure the license server is updated with the latest major version's password.
     - This will require IT assistance.
      - If this is not performed, you may see "Missing Security Device" message upon starting the application.


1) Download the Full Installation - Nucleo V2025 Full Installation

You can also use the link below to access the download from our website. Be sure to select the red underlined file for download. All files necessary for the base installation are included.

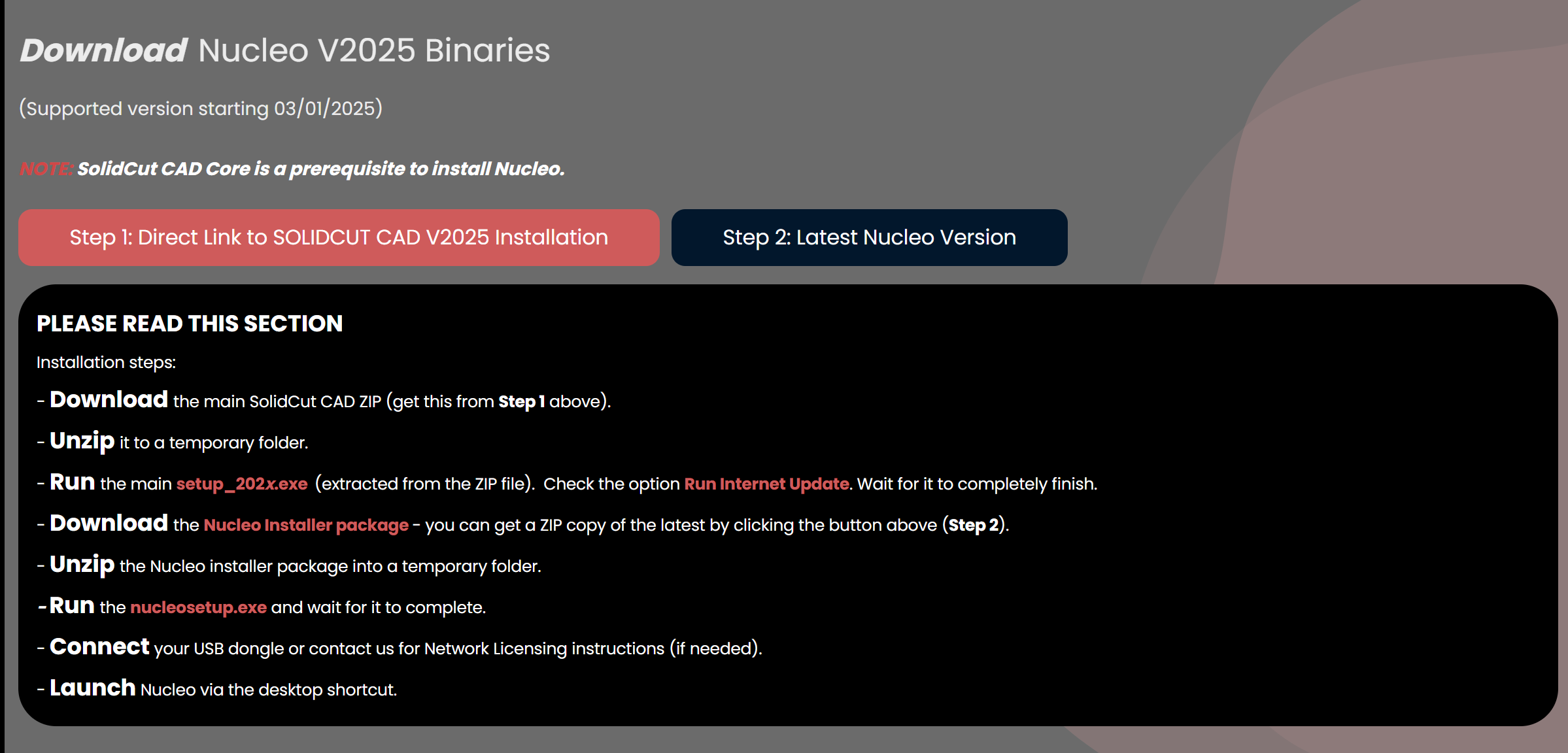

Website - Nucleo Downloads

Scroll down to the Solid Cut Installation 2025 Window, check the box in the file below, and then click the green arrow to download.






If you accidentally click the file instead of checking the box you can now Press one of the Download Buttons to save the ZIP file.

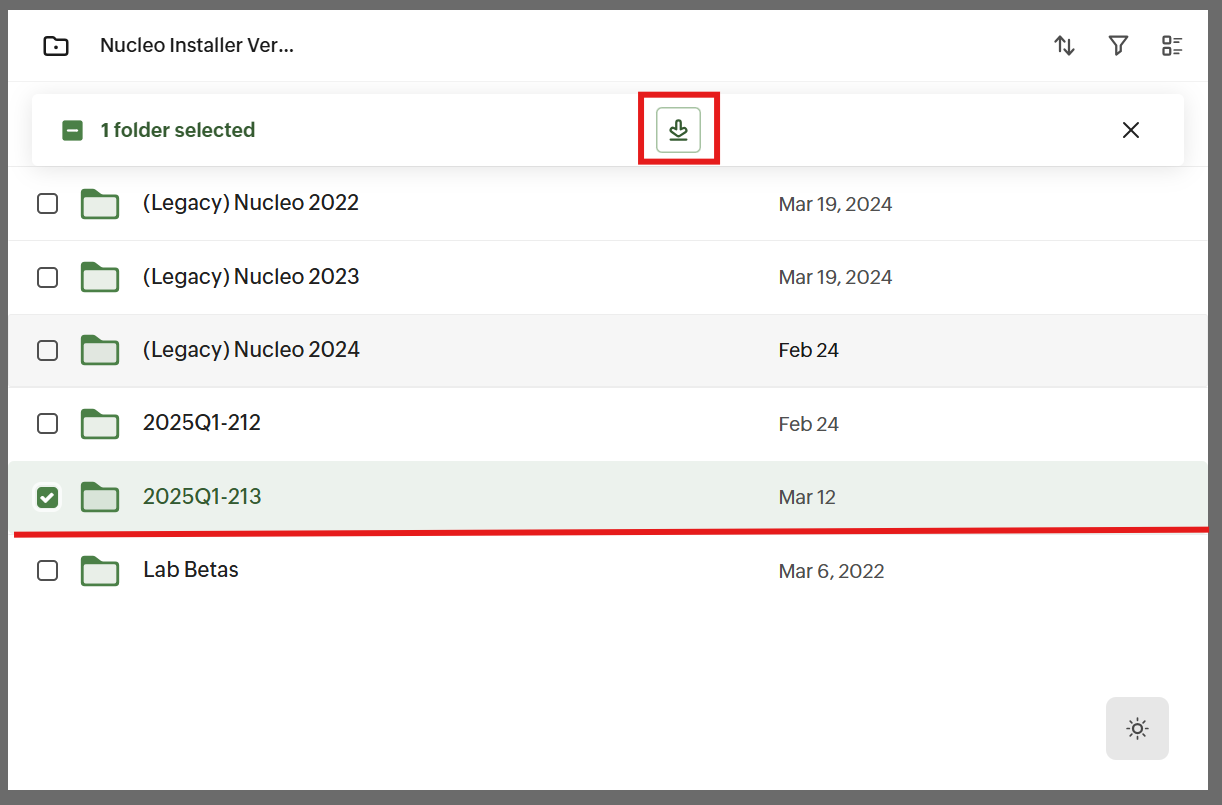

Scroll Down to the Nucleo Installer Versions Section and you will need to download the current release.  It will be the 2025Q1-??? folder where the "???" represents the current release.  check the box on the file and then press the Green Arrow to download




2) unzip both downloaded files to separate temporary folders.

Solidcut download will contain the below files

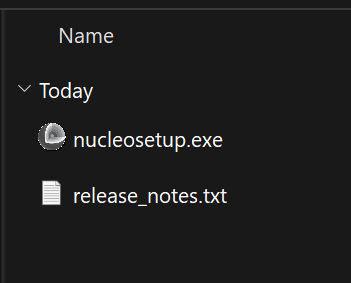

Nucleo Download with contain the below files



3) Starting with the Solidcut Cad Download Right-click and "Run As Administrator" the SETUP_20??.EXE in the same folder (it will have a numeric extension where the question marks are). This will install the SolidCut CAD module that Nucleo is built upon.

4) Agree to the License Agreement, and choose the default options for the dongle style, installation path, etc. Check the option to run the Online Update at the end of the installation.

5) Install all options available in the setup options.

6) Next install the Nucleo Build that you downloaded above.

Once installed you will see the Nucleo both in your Programs list and on the desktop.  You will have an icon for each build that you have installed.



Alert
The current Release as of March 25th 2025 is V2025Q1-213

This allows you to run and maintain different Nucleo versions within the same core SolidCut CAD environment.

7) After completion, it should be ready to use (assuming the licensing installation requirements have been completed).

-End-
