XML File Could Not be Opened Error After Installation.

XML File Could Not be Opened Error After Installation.

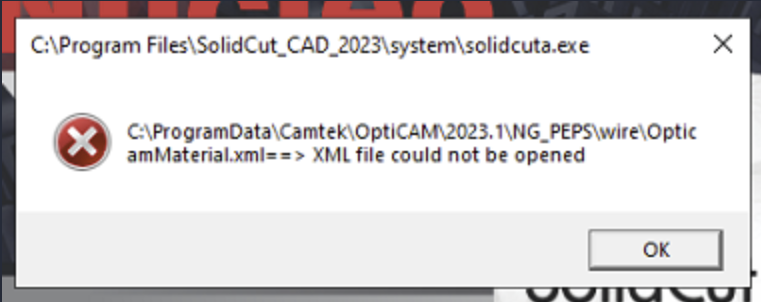

When a customer gets this error message after installing Nucleo or if they run the Solidcut_CAD Updater you will need to send them the attached file for them to extract the missing files.



Extract the files to the folder below.
C:\ProgramData\Camtek\OPTICAM\2023.1\ng_peps\wire

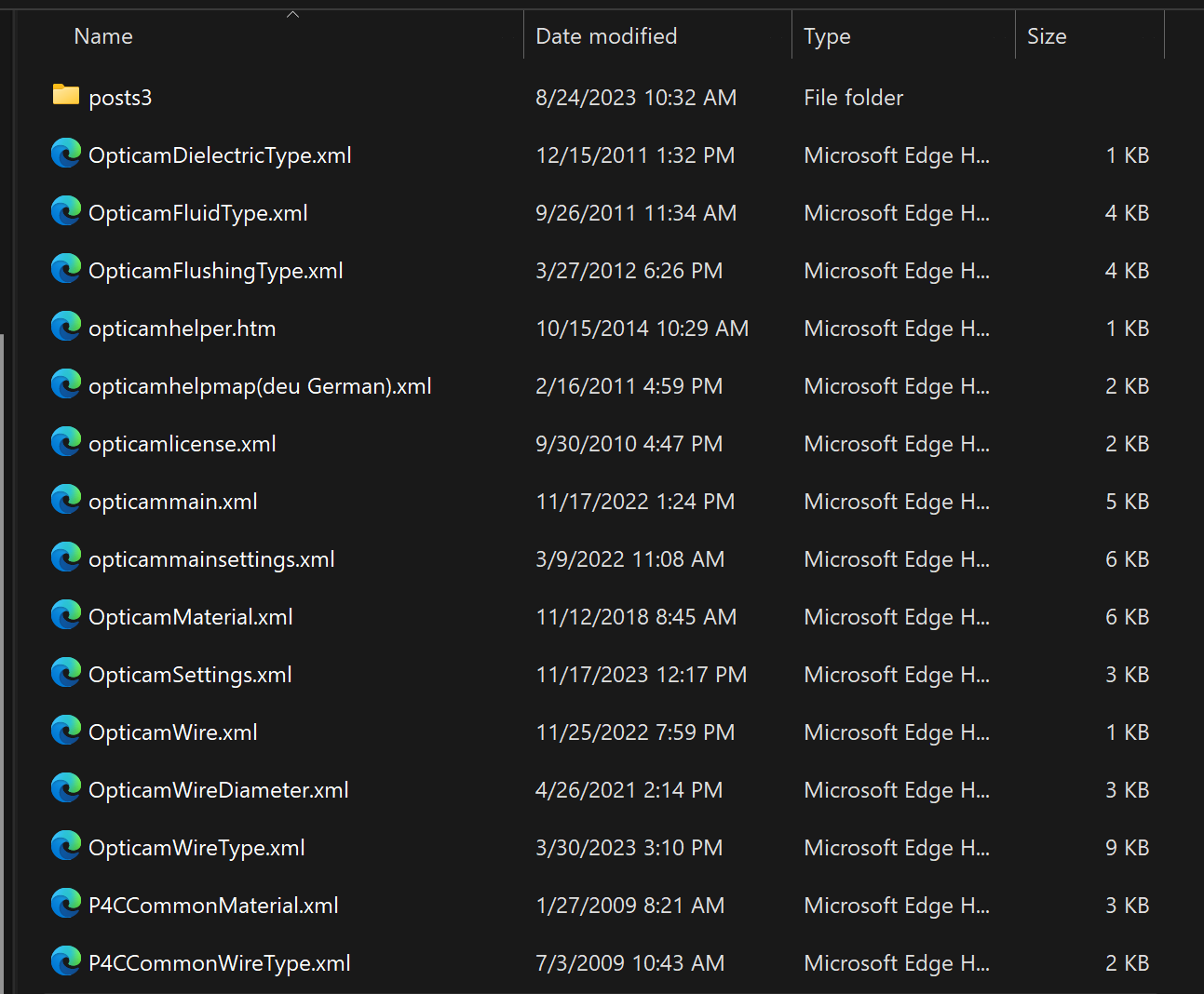

What is should look like once the files are extracted to this folder.


Restart the software and the error message should go away.  If you are still experiencing trouble please let us know and we can set up a remote meeting to assist.
